Right angle 6Pin male and female magnetic charging cable connector for robot,the female pin is plane
1. Key Features
.Neodymium (NdFeB) magnets with ≥600G holding force for application docking.
.Self-aligning design.
√Right-Angle 6-Pin Configuration
.Space-saving 90°PCB mount (soldering/SMT options).
.Pinout: 2x power (+12V/GND) + 2x data + 2x reserved (customizable).
√High Durability
.50,000+ mating cycles (spring-loaded gold-plated pins).
.IP67-rated option (dust/waterproof for industrial robots).
√Safety & Compliance
.Anti-spark design (low-voltage pre-charge pins).
.Short-circuit/overcurrent protection.
.RoHS, REACH, UL94 V-0 compliant.
2. Technical Specifications
| Category | Parameter | Value |
| Electrical | Voltage Rating | 12V DC |
| Continuous Current | 5A (per power pin) |
| Contact Resistance | 50mΩ Max (PIN). |
| Mechanical | Spring Force | 80g ± 20g |
| Magnetic Force | 600G |
| Operating Temperature | -40°C to +105°C |
| Materials | Housing | HTN+30% UL94 V-0 black, |
| Contacts | Brass + gold plating |
| Magnet | Neodymium iron boron |

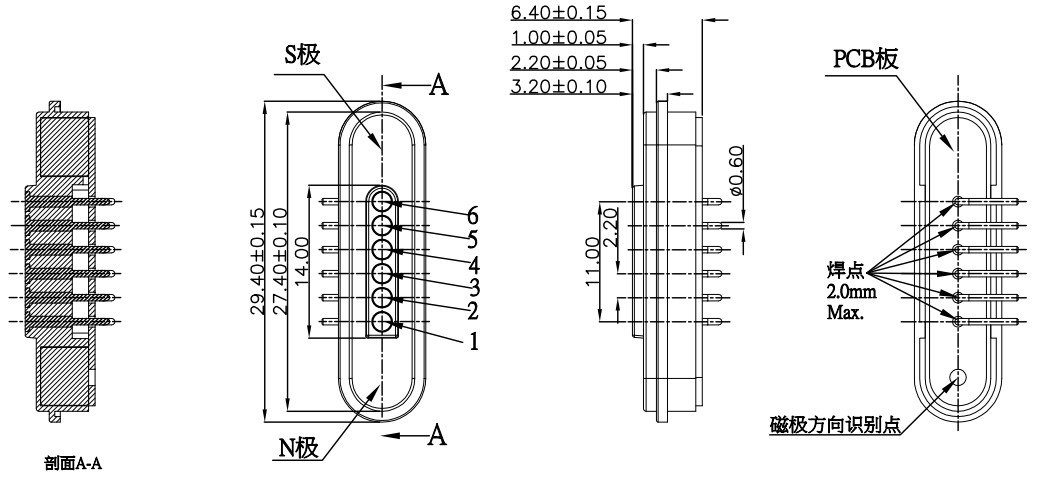

6Pin Male Right Angle Magnetic Connector Technical Drawing:
6Pin Female Right Angle Magnetic Connector Technical Drawing:
Why Choose UPE:
. Fast prototyping: 3-5 days for samples
. Cost-effective: Competitive MOQ pricing
. Quality assurance: 100% automated testing
. High-tech production with precision engineering
. Systematic quality control for consistent performance
Advantages of Magnetic Connector:
1)Automatic adsorption connected experience; Easy operation;
2)Uses a magnetic interface to remove the device easier.
3)High life cycle. It supports 50,000-300,000 reattachment life times;
4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);
5)Support a high current (3A-20A), faster recharge;
6)Excellent corrosion rating (48H-120H) meet the harsh environments；
8)Shape customized to meet with product shape matching, improve product selling point;
9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish
the direction( It is user-oriented and user-friendly)
10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);
11)Development time is short, low-cost mold for customization;
12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
Magnetic connectors application:
How to place the order
* You send us drawing or sample
* Our professional engineering team conducts the assessment
* You confrim the drawing and we make the sample to send you
* You test the sample and approved,then place an order and pay 50% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to you with DHL, TNT,UPS,Fedex
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
